Little Giant MCT-10 Stainless Steel Machine Tool Coolant Tank with Chip Collector, Splash Deflector, Hose, Nozzle and Control Valve for Cutting Oils Up to 300 SSU, 10-Gallon (no Pump), Blue, 560300
Product details
| Management number | 218122689 | Release Date | 2026/05/03 | List Price | $348.80 | Model Number | 218122689 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Little Giant MCT-10 machine tool coolant tank is for use on medium size lathes, grinders, cut off machines, milling and drilling machines using water soluble or light cutting oil. Includes 10-gallon painted metal tank with baffle that provides more settling capacity and coolant volume, 4-ft neoprene hose with brass nuts, metal flex nozzle and brass control valve. This tank also has a removable chip collector tray and splash deflector. For use with cutting oils up to 300 SSU viscosity. This unit DOES NOT include a pump. The pump must be purchased in addition to this tank kit. Below is shown expected flow rates with the four recommended pumps.Recommended pumps and gph at 1' lift:Little Giant 3E-12N (503103) 197 gph in water soluble oil; 139 gph in 100 SSU/cutting oil; 108 gph in 300 SSU/cutting oilLittle Giant 4E-34N (504103) 210 gph in water soluble oil; 157 gph in 100 SSU/cutting oil; 124 gph in 300 SSU/cutting oilLittle Giant 5-MSP (505723) 212 gph in water soluble oil; 161 gph in 100 SSU/cutting oil; 127 gph in 300 SSU/cutting oilLittle Giant 6-CIM-R (506271) 185 gph in water soluble oil; 138 gph in 100 SSU/cutting oil; 108 gph in 300 SSU/cutting oilThis product's dimensions are 25" long x 10" wide x 12.05" high.
- APPLICATIONS: for use on medium-sized equipment; single-sprindle drill presses or tapping machines, bench mills, tool grinders, cut-off saws, small lathes using water-soluble or light cutting oil
- FEATURES: for use with cutting oils up to 300 SSU viscosity; painted metal tank with baffle, removable chip collector tray and splash deflector
- INCLUDED: 4-ft neoprene hose with brass fittings, plastic flex nozzle and brass control valve; adaptors and fittings are included for use with recommended pumps
- PUMP NOT INCLUDED; Little Giant recommended pumps: 3E-12, 4E-34N, 5-MSP, 6-CIM-R; see description for additional details

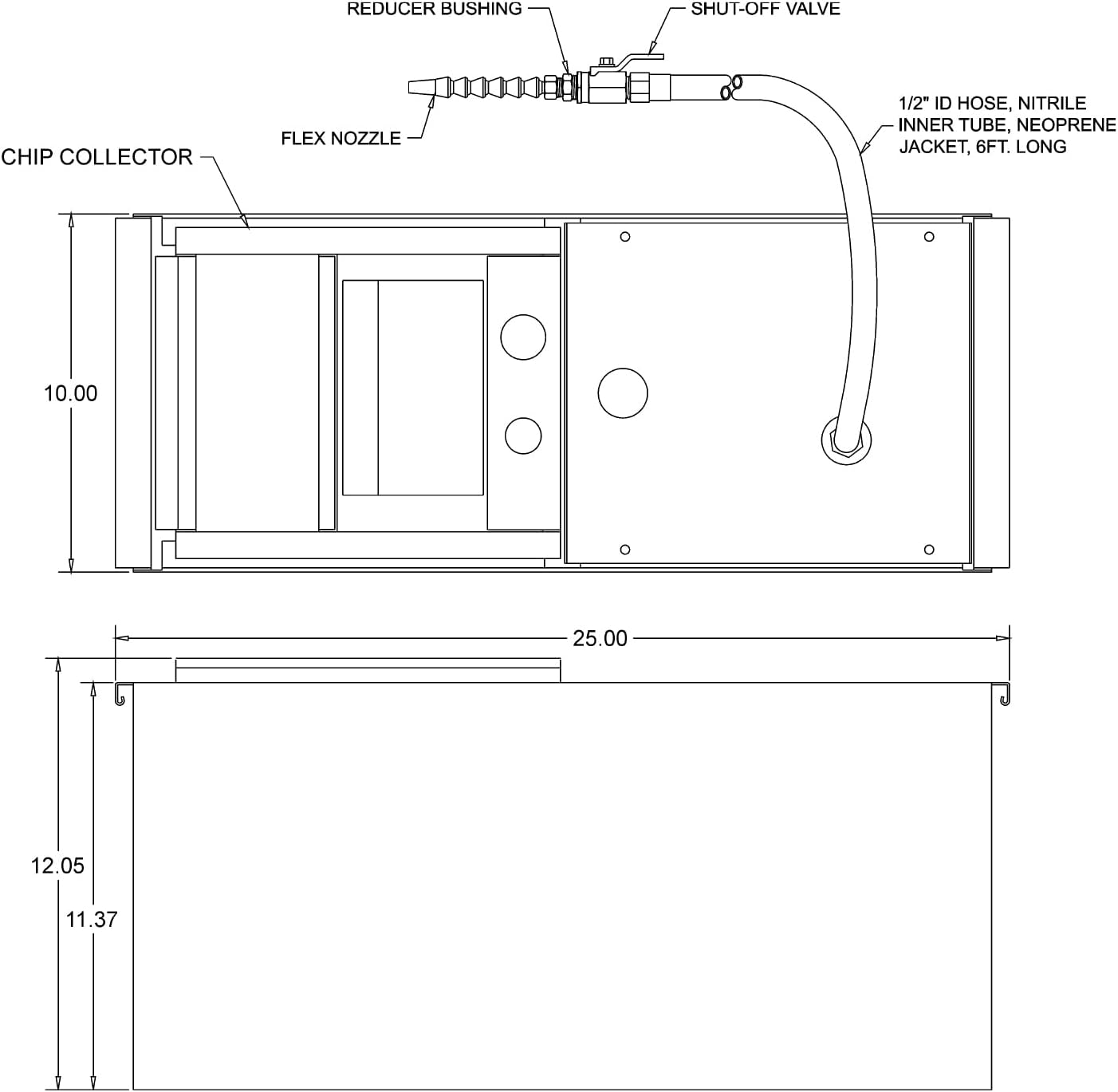

- SPECIFICATIONS: 10-Gallon (37.8 liter) metal tank with baffle; Hose type: 4-ft. neoprene 1/2-inch I.D x 3/8-inch NPSM Female; 25 inches long x 10 inches wide x 12.05 inches high
| UPC | 010121603004 |
|---|---|
| Model | 560300 |
| Brand Name | Little Giant |
| Unit Count | 1.0 Count |
| Item Weight | 28.9 Pounds |
| Part Number | MCT-10 |
| Contact Type | Normally Open |
| Manufacturer | Franklin Electric Co., Inc. |
| Mounting Type | Panel Mount |
| Connector Type | Quick Connect |
| Operation Mode | Automatic |
| Contact Material | Brass |
| Included Components | Tank, hose, shut-off valve, chip collector, adaptor, flex nozzle |
| Warranty Description | 1 year manufacturer |
| Global Trade Identification Number | 00010121603004 |
