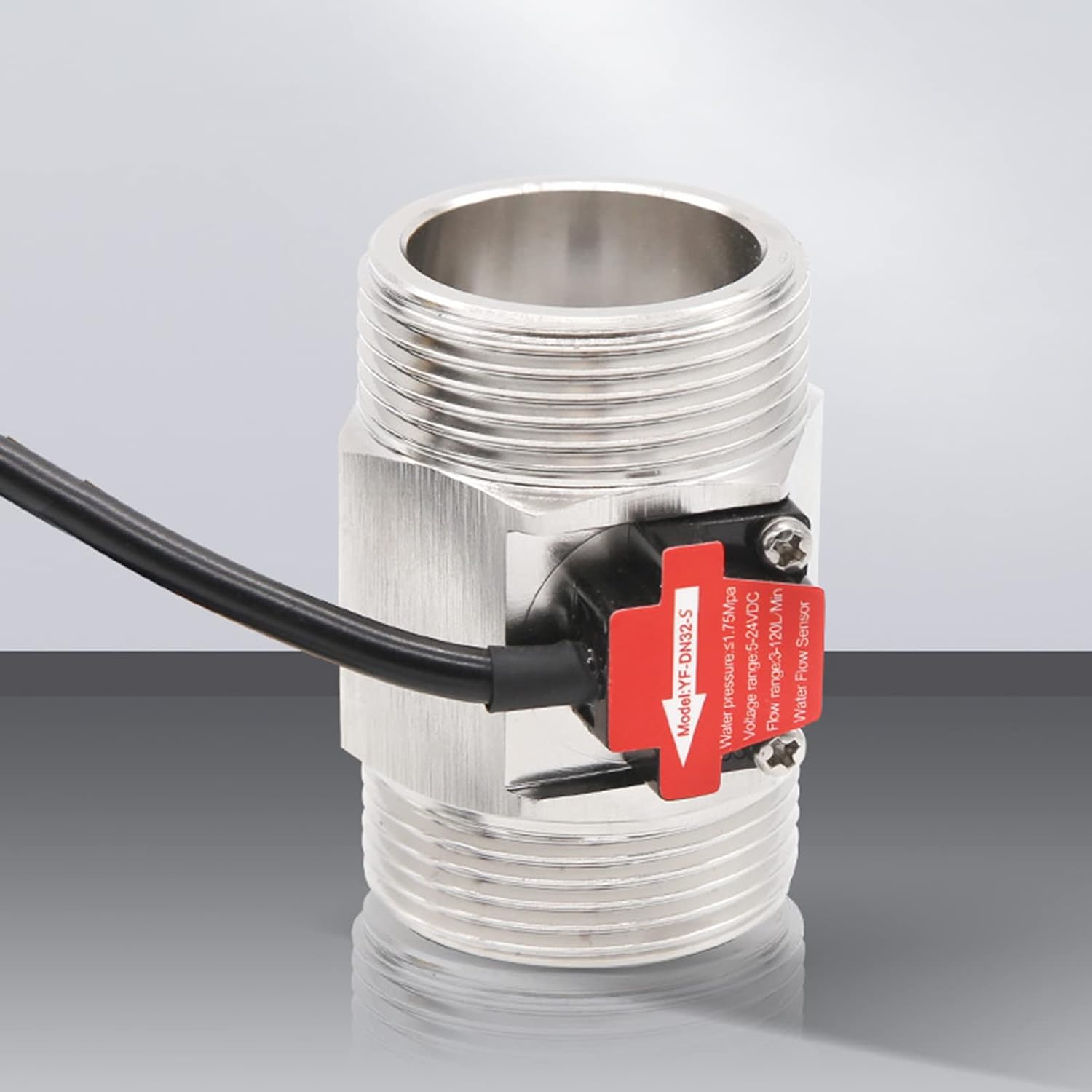

Yuly 1.25" Flow Sensor Stainless Steel Effect Liquid Water Switch Meter Flowmeter Flow Sensor Voltage 5-24VDC

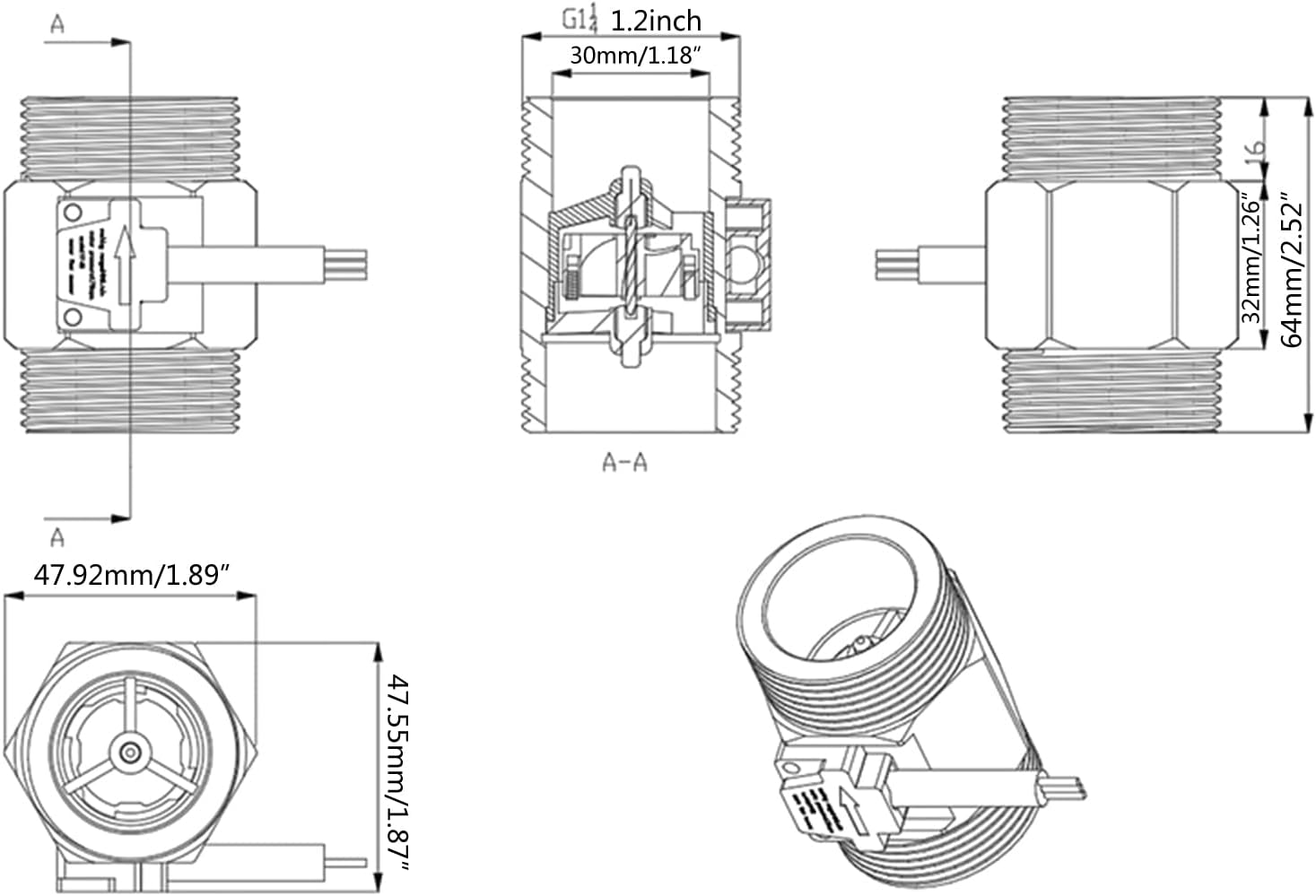

1.25" Flow Sensor Stainless Steel Effect Liquid Water Switch Meter, Flowmeter Flow Sensor Voltage 5-24VDC flow sensorFeatures:Thread: 1.25-inch, flow range: 3-120L/MIN1%, volatge: 5-24VDC.All stainless steel structure, good sealing performance, easy to install.Wiring: Red-in-Positive/Yellow-out-signal output/Black-GND-Negative.The water- flow sensor consists of stainless steel body, flow rotor- assembly and sensor.Widely used in petrochemical industry, farmland- irrigation, waterworks-, residential water flow- control, swimming pool, water conservancy- river thinning and other water- flow control fields-.Specifications:Material: stainless steel Size: approx 4.7x4.7x6.4cm/2x2x2.5inOperating voltage range: 5-24VDC operating current: 15mA (DC5V)Load capacity: equal or less than 10mA (DC5V)Allowable pressure equal or less than1.75mpaStorage temperature/humidity: -25 to +80C/25% to 90%RH-Flow range: 3-120L MIN1 characteristics (Hz) =[1.08xQ]5%, which is 64 pulses per liter of waterInner diameter/outer diameter inlet inner diameter 32.5mm, outlet inner diameter 30mm/ outer diameter 41.5mmThe length of screw teeth is 16mmOutput high level : more- than DC4.5V (input voltage DC5VOutput low level: The output duty ratio is 5010%Package Includes:1x Water- Flow SensorNote:Please allow 1-3cm error due to manual measurement. pls make sure you do not mind before you bid.Due to the difference between different monitors, the picture may not reflect the actual color of the item.

• Wiring: Red-in-Positive/Yellow-out-signal output/Black-GND-Negative.
• The water- flow sensor consists of stainless steel body, flow rotor- assembly and sensor.
• All stainless steel structure, good sealing performance, easy to install.
• Widely used in petrochemical industry, farmland- irrigation, waterworks-, residential water flow- control, swimming pool, water conservancy- river thinning and other water- flow control fields-.
• Thread: 1.25-inch, flow range: 3-120L/MIN±1%, volatge: 5-24VDC.
